Complete Foam Concrete Engineering Systems

We deliver complete foam concrete production systems including formulation, mixing, pumping, installation, training and turnkey engineering support.

Turnkey Plant Solutions
Overseas Installation
Formula Support
Project Consulting

Typical Applications

Precast Factories
Lightweight Housing
Road & Flooring
Industrial Plants

System Overview

Our equipment center covers foaming machines, mixers, pumping systems to precast production lines, providing a complete solution.

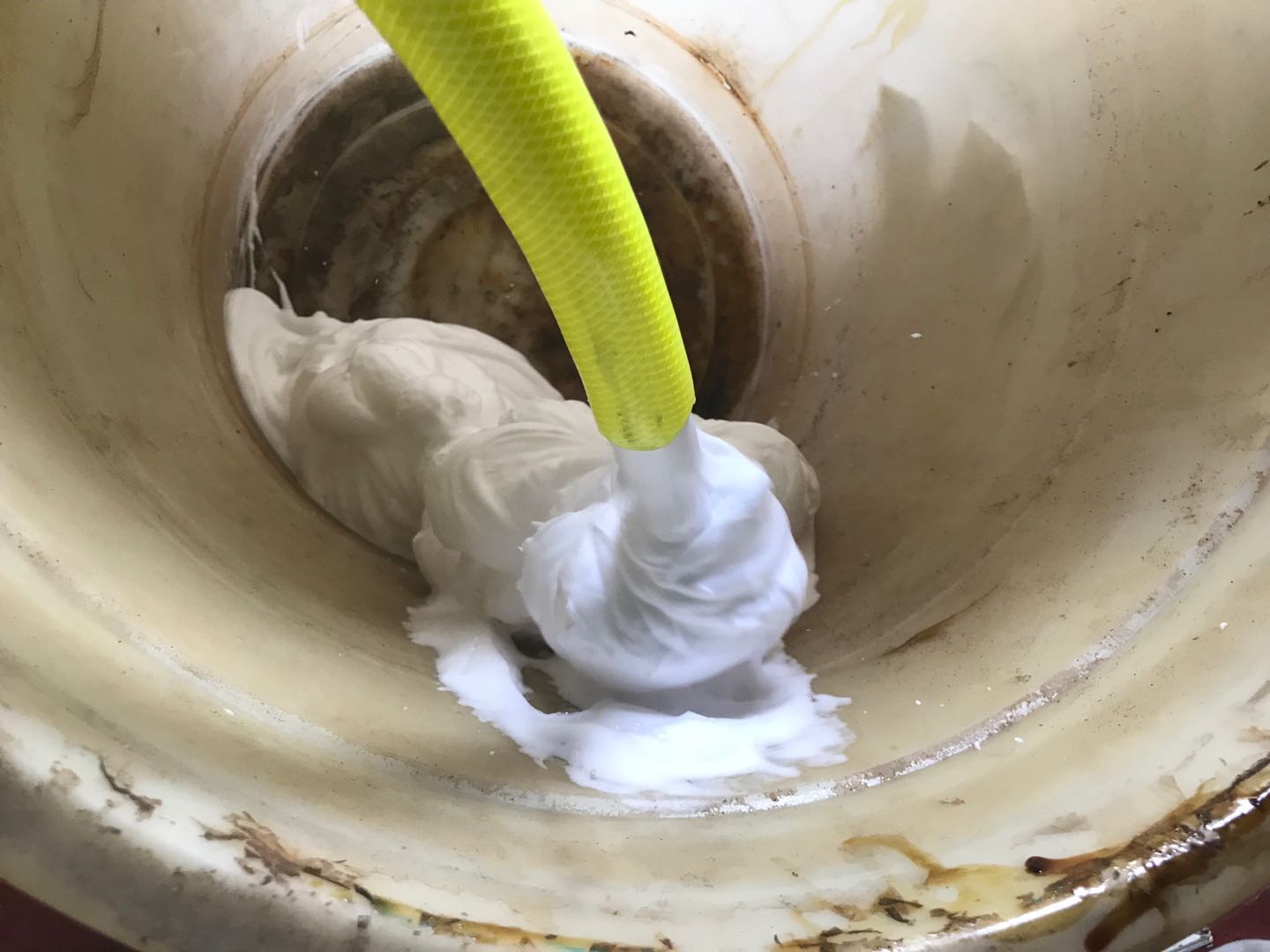

Synthetic Foaming Agent
foaming agent

Synthetic Foaming Agent

High-foaming synthetic surfactant producing large foam volumes with rapid bubble generation. Ideal for low-density foam concrete (300-600 kg/m³).

Type
Synthetic (anionic)
Appearance
White liquid
pH Value
7.5-8.0
Density
1.02-1.06 g/cm³
Dilution Ratio
1:30至1:50
Foam Output
800-1200升/升
Half-life
60-90分钟
Bubble Size
0.5-1.2 mm
Optimal Density
300-600 kg/m³
Storage
12个月

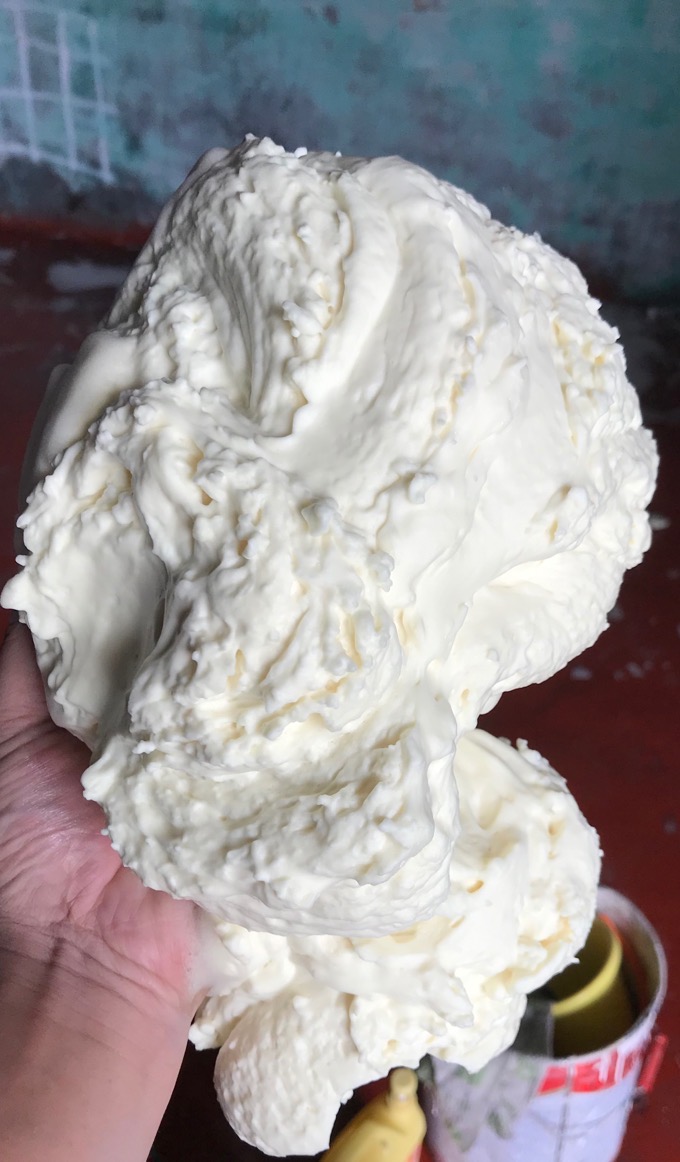

Protein-Based Foaming Agent

Protein-Based Foaming Agent

High-performance protein foaming agent producing stable, fine-cell foam with excellent water retention and compatibility with all cement types.

Type
Protein-based
Appearance
Brown liquid
pH Value
6.5-7.5
Density
1.02-1.06 g/cm³
Dilution Ratio
1:30至1:50
Foam Output
800-1200升/升
Half-life
60-90分钟
Bubble Size
0.5-1.2 mm
Optimal Density
300-600 kg/m³
Storage
12个月

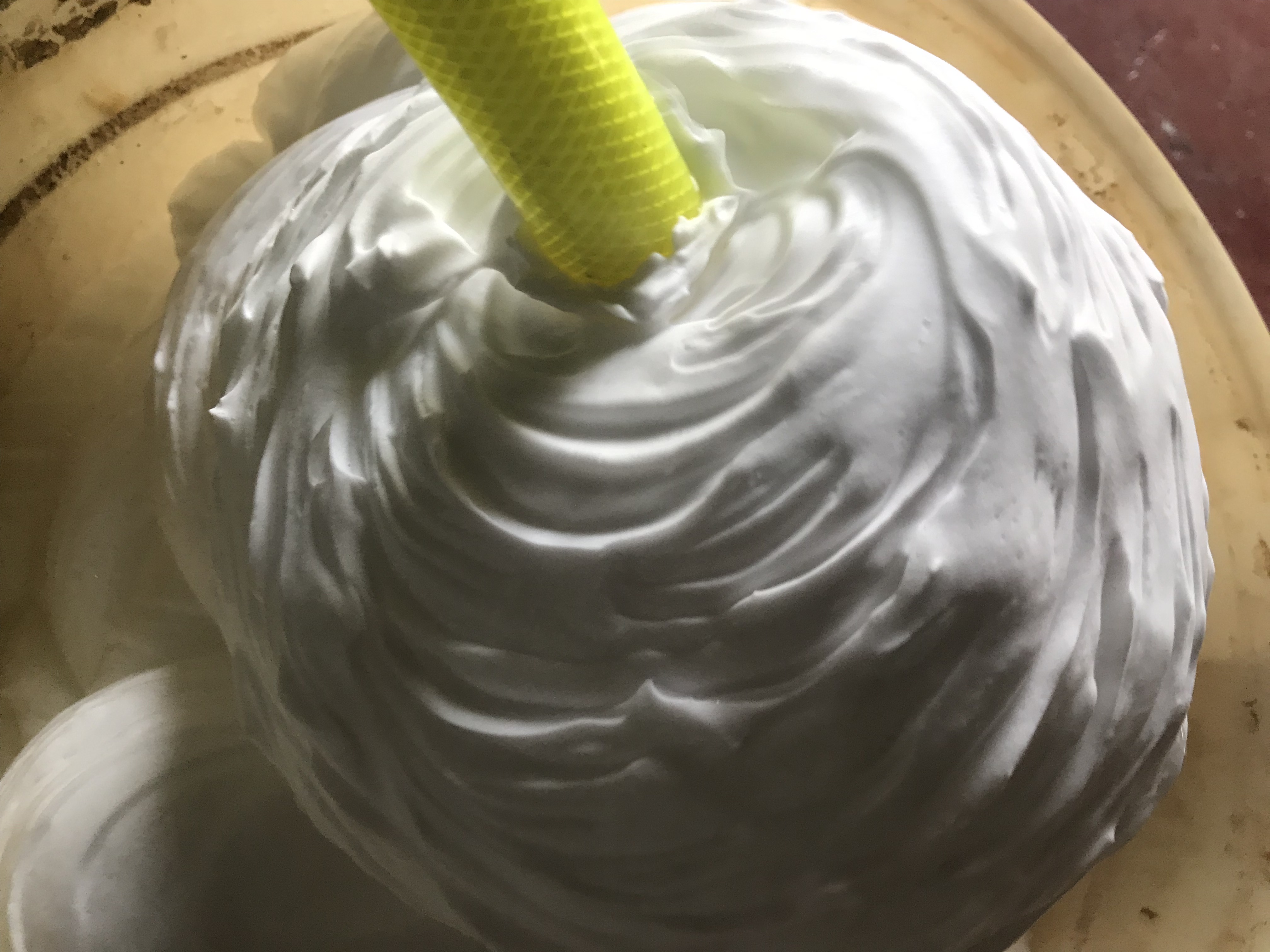

Plant-Based Foaming Agent
Plant-Based Foaming Agent

Plant-Based Foaming Agent

Eco-friendly plant-based foaming agent derived from natural saponins. Produces stable, biodegradable foam with excellent environmental profile.

Type
Plant-based (saponin)
Appearance
Brown liquid
pH Value
6.5-7.5
Density
1.03-1.08 g/cm³
Dilution Ratio
1:30至1:40
Foam Output
600-90升/升
Half-life
90-120分钟
Bubble Size
0.4-1.0 mm
Biodegradability
>90% in 28 days
Storage
9个月

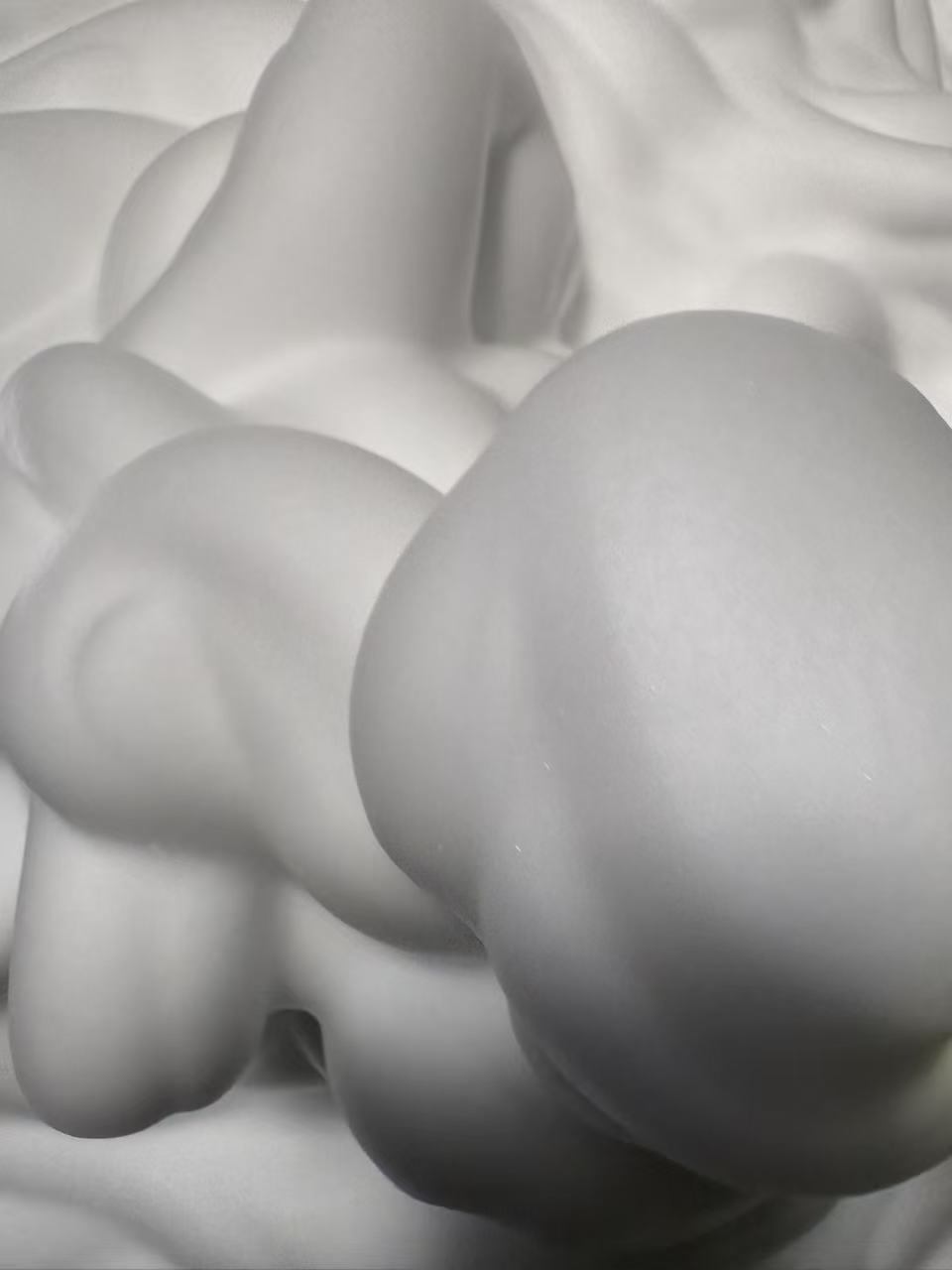

Gypsum Foaming Agent
gypsum-foaming-agent

Gypsum Foaming Agent

High-performance foaming agent specially designed for gypsum products and lightweight gypsum materials, featuring stable foam structure, uniform pores, and excellent compatibility with gypsum systems.

Appearance
‌Transparent liquid‌
Foaming Ratio
20–40 Times
Foam Density
40–80 g/L
Dilution Ratio
1:20 – 1:40
Working Temperature
5–40°C

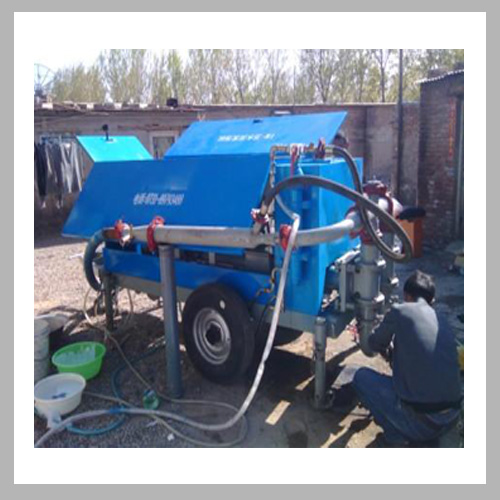

Foam Concrete Machine for CLC Blocks, Roof Insulation & Backfill – Accurate Density Control

Foam Concrete Machine for CLC Blocks, Roof Insulation & Backfill – Accurate Density Control

This foam concrete machine adopts physical foaming technology to mix foaming agent with cement slurry uniformly, producing lightweight, porous, self-leveling cellular concrete. Suitable for large, medium, and small projects as well as block production.

Theoretical Output
25 m³/h
Working Pressure
4–8 MPa
Foaming Multiple
20–30 times
Density Range
300–1200 kg/m³
Total Power
45 kW
Hopper Capacity
0.2 m³

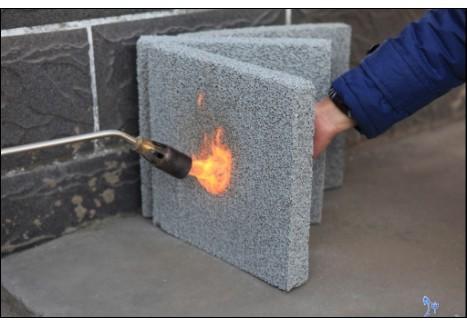

Foam Cement Fireproof Boards
Foam concrete plant

Foam Cement Fireproof Boards

Dwell A1-class fireproof insulation panel is one of the series of energy-saving building materials produced by Changsha Deju Technology Co., Ltd. It is a new type of foamed concrete material that meets all national requirements for building fire safety, thermal insulation, energy efficiency, and environmental protection.

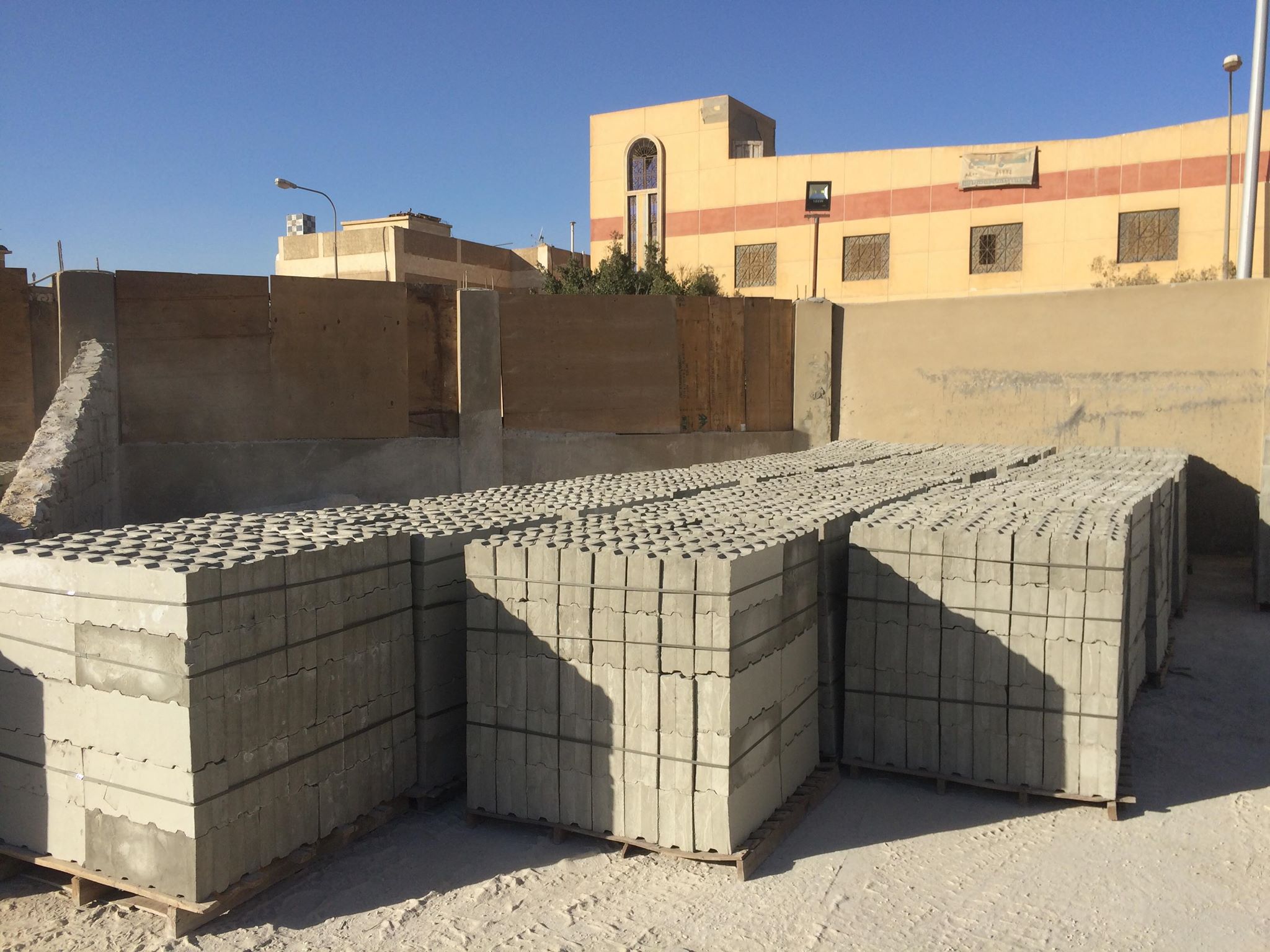

Foam Concrete Block Plant

Foam Concrete Block Plant

Foam concrete blocks are an important measure to improve building functions, enhance resource utilization efficiency, and protect the environment. the production of foam concrete blocks consumes substantial amounts of solid waste, including coal gangue, fly ash, construction debris, and metallurgical and chemical residues.

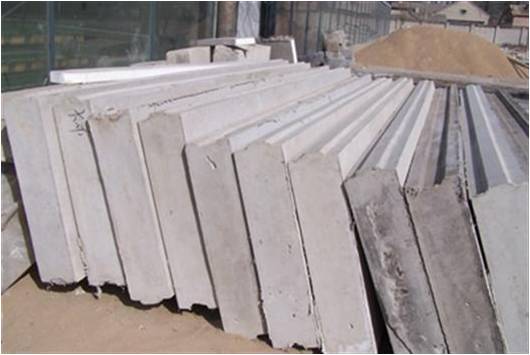

Lightweight Wall Panels

Lightweight Wall Panels

Foamed concrete wall panels have superior fire resistance, moisture resistance, and noise reduction capabilities, and at the same time, they also possess excellent thermal insulation effects.

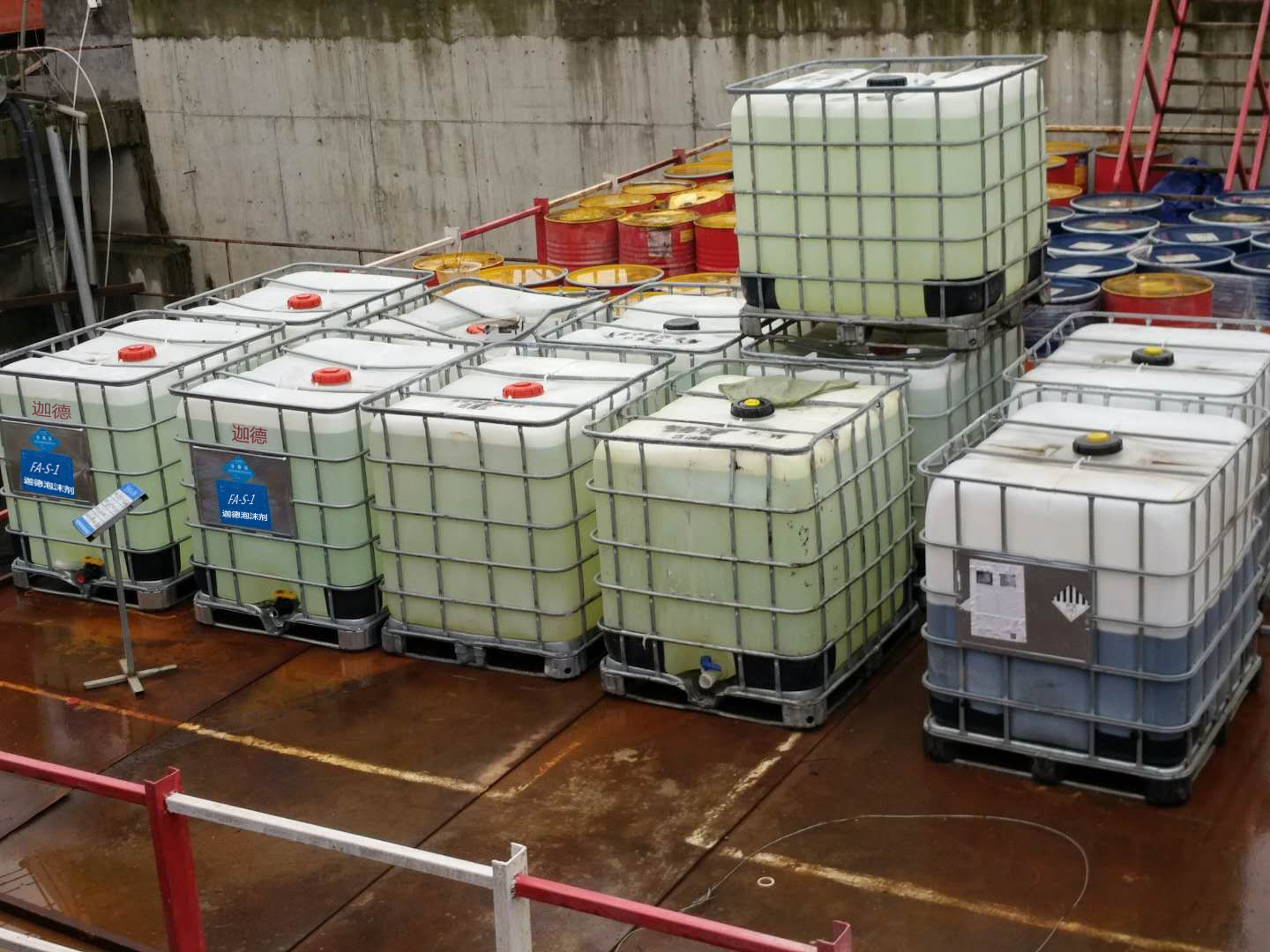

Backfill Solution for Mines and Underground Voids

Backfill Solution for Mines and Underground Voids

Traditional backfill materials such as soil, gravel, and conventional concrete often present significant challenges in mining and underground void applications—including excessive weight, settlement risks, high material costs, and difficult placement.

Permeable Foamed Concrete

Permeable Foamed Concrete

Permeable Foamed Concrete is a lightweight porous concrete designed for drainage, water management, thermal insulation and lightweight fill applications.

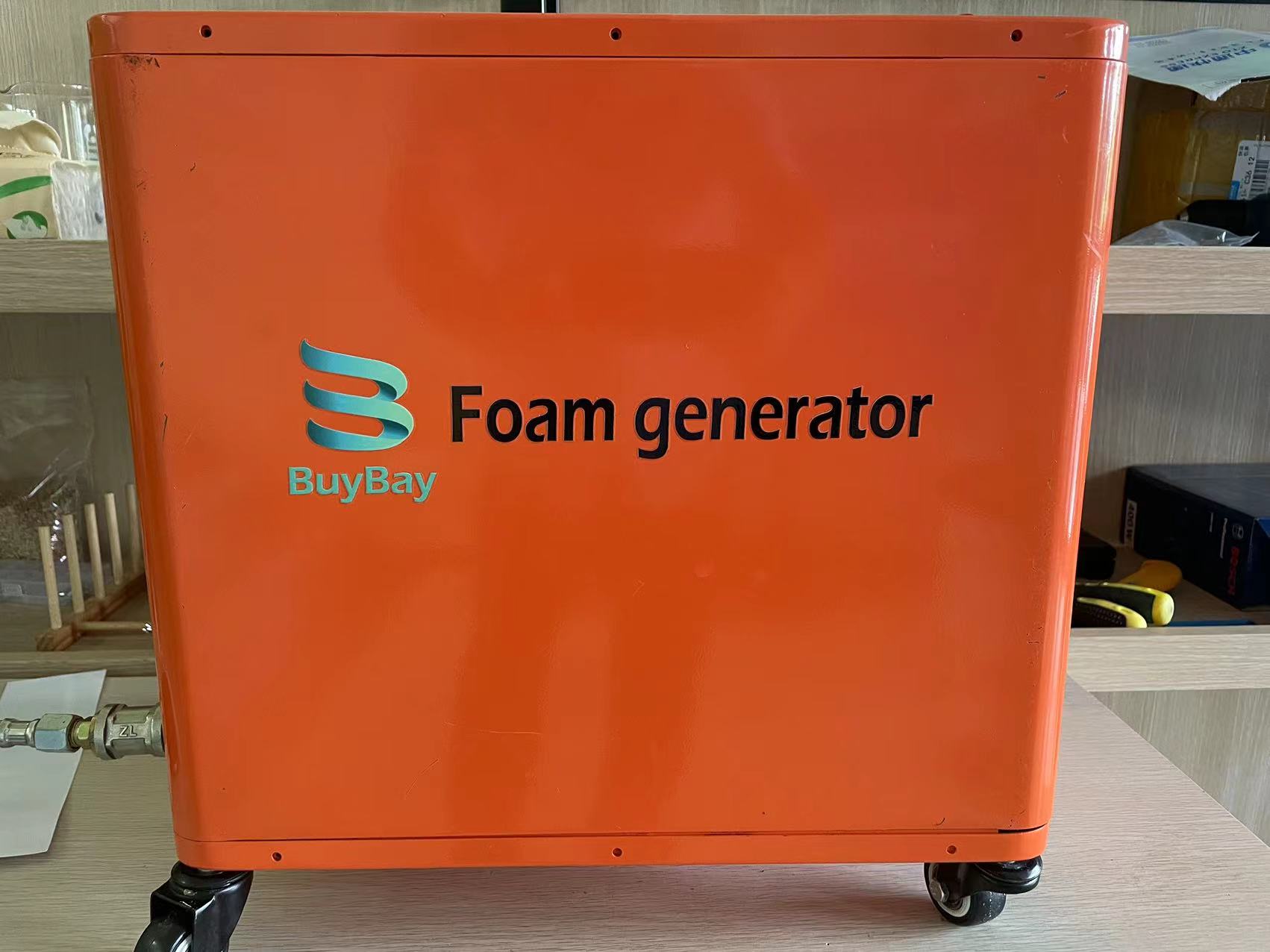

Foamed Concrete Foam Generator Machine
foamed-concrete-foam-generator

Foamed Concrete Foam Generator Machine

High-performance foam generator designed for stable and continuous foamed concrete production, suitable for insulation, void filling, lightweight concrete, and infrastructure projects.

Type
FG-5
Voltage
220 V
Output
5 m3/h
Weight
30KGS
Size
300*400*500mm
